Mini SAS HD 4i SI Test Fixture Board, 100ohm, SMA 2.92mm conn

製品ID: 8643-4i-HMSITFB

製品概要

MINI SAS HD 4i MCB Test Fixture
The lead time will be 4-6 weeks from order to shipment.

アプリケーション

  1. SAS4
  2. SAS3

特長

  1. Complies with SFF-8643
  2. Backward compatible with 12Gb/s, 6Gb/s SAS, 16Gb/s PCIe

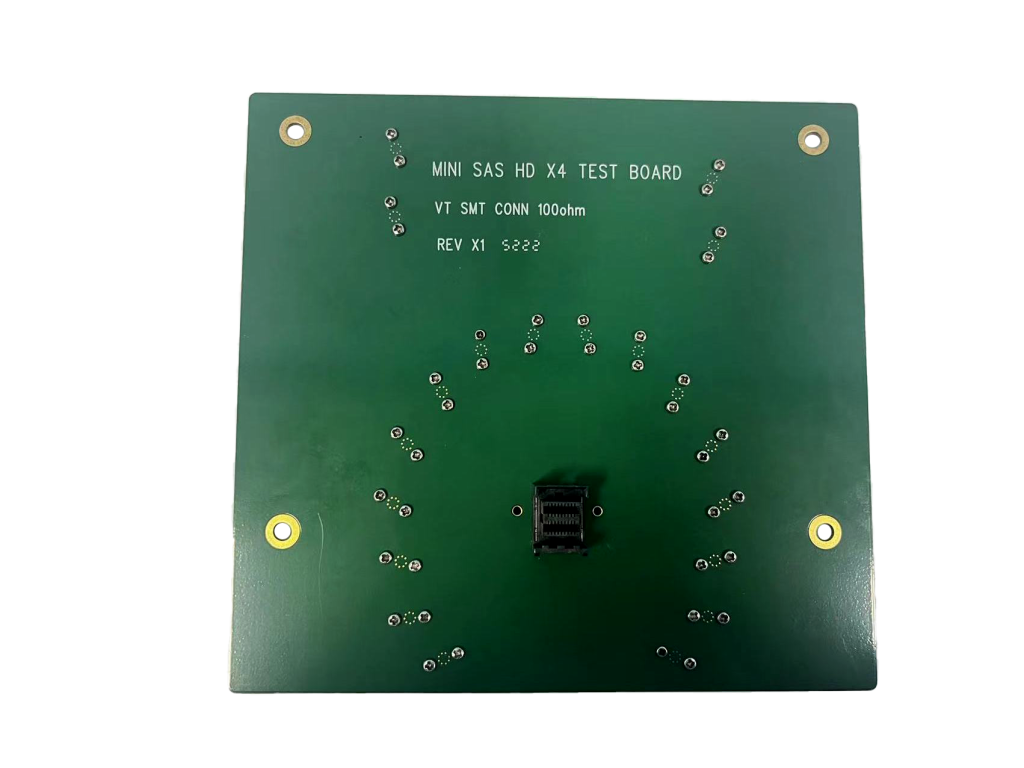

  3. SAS connector is on opposite to RF connector
  4. RF Connector: 2.92mm K-Type
  5. De-embedding Line designed on board

製品仕様

  1. Complies with SFF-8643
  2. Connector: Vertical
  3. Speed up to 22.5Gbps
  4. RF Connector 2.92mm K-Type, 50 ohm

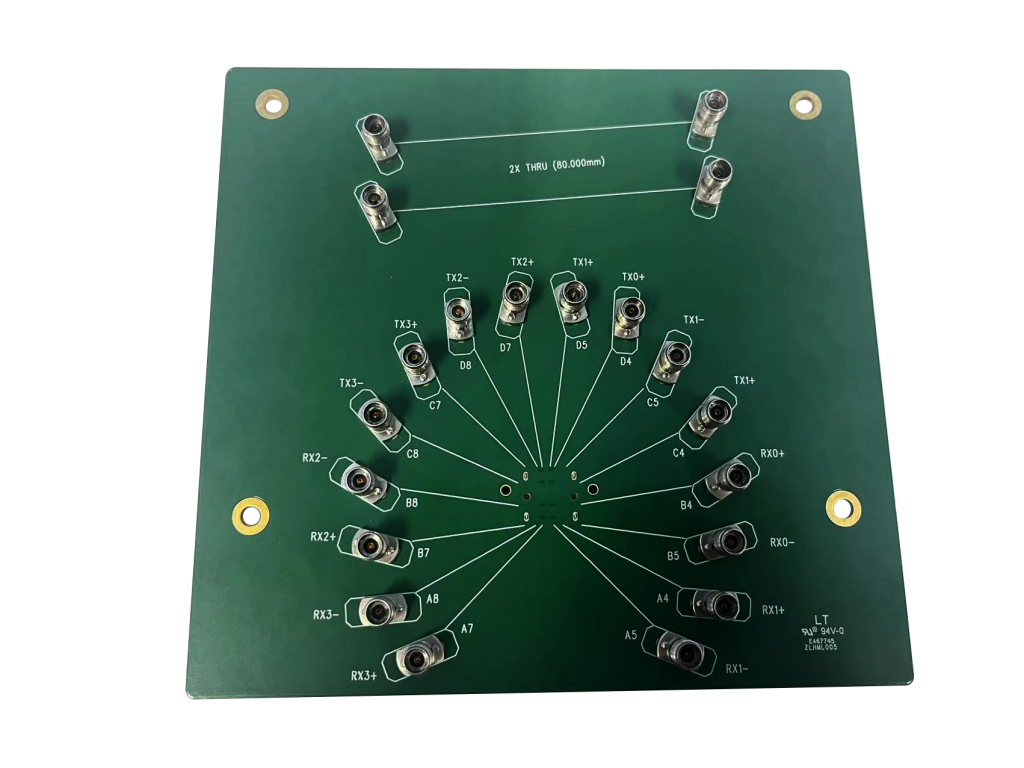

  5. Connector Input/Output Layout TX0 ~ TX3, RX0 ~ RX4
  6. De-embedding Line 2X Thru x2
