PCIe MCIO8i CLB6.0 Test Fixture Set

製品概要

アリオン開発したPCIe MCIO4i CLB6.0 テストフィクスチャセットです。

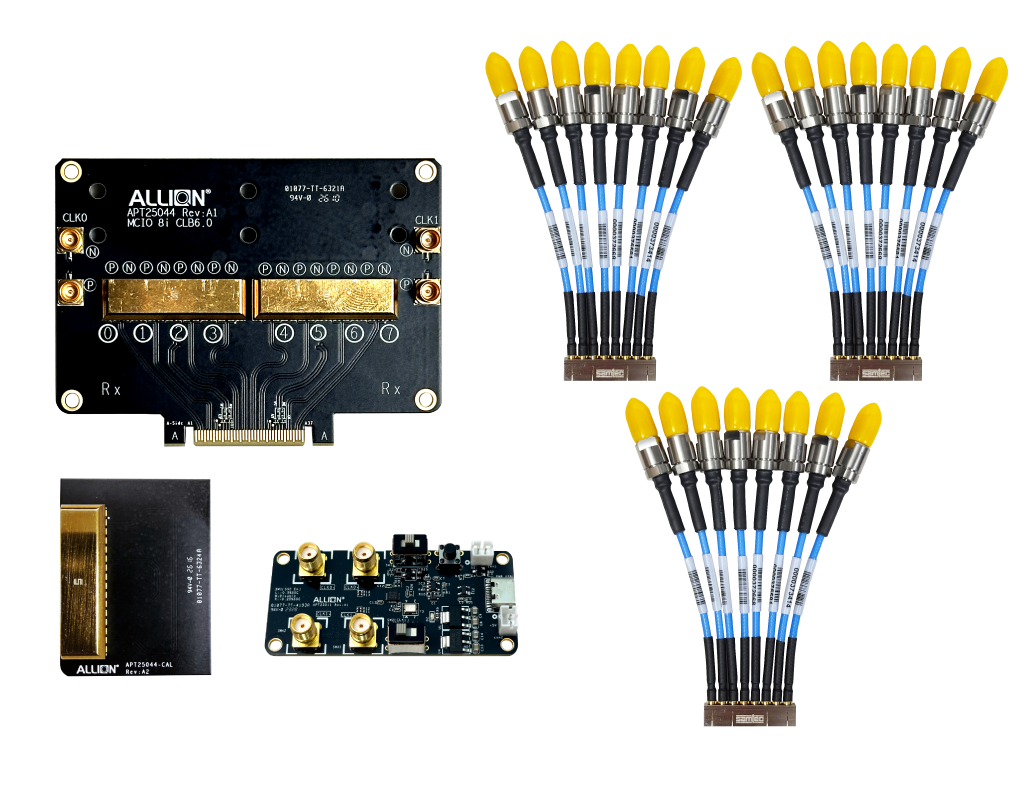

• 本製品は、以下のセット内容が含まれています：

1. PCIe MCIO8i CLB6.0 Test Fixture (Model Name: APT25044)

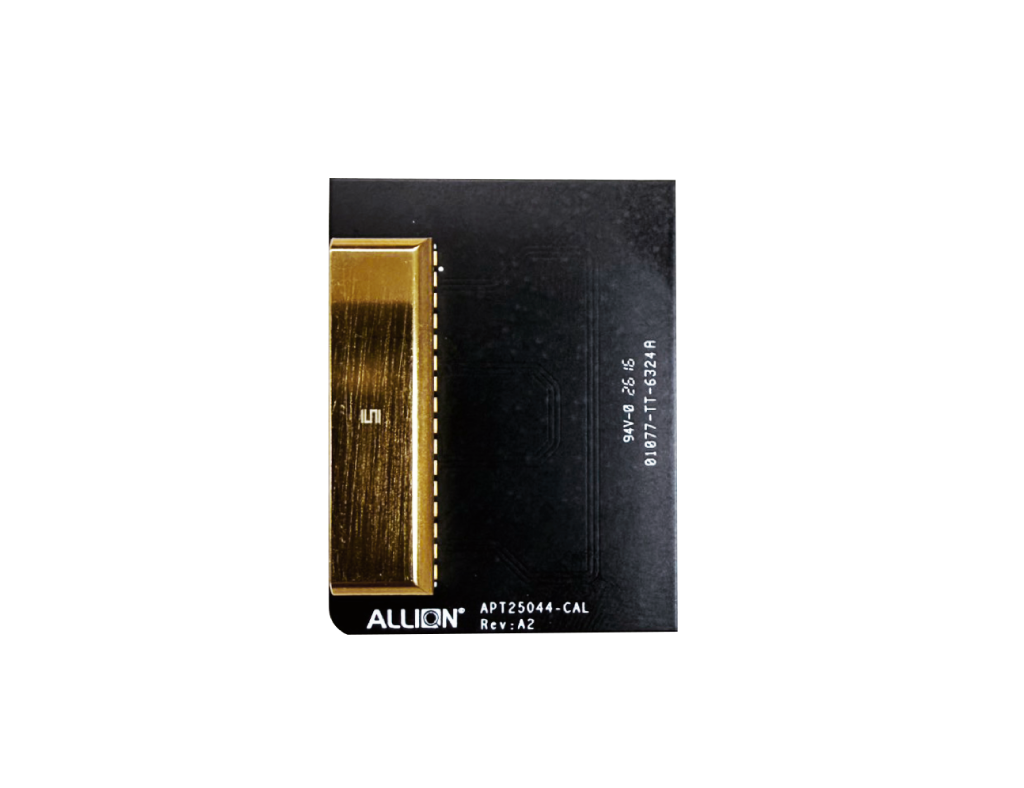

2. PCIe MCIO8i Calibration board (Model Name: APT25044-CAL)
3. Allion CMTS Board (Model Name: APT23011)
4. SMPM by 8 Cable Module*3

• 納期（受注生産）：約8～10週間

アプリケーション

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe MCIO8i Socket

特長

• Compatable with PCIe MCIO8i Gen5/ Gen6 Electical Test for Tx & Rx
• Stronger SMPM Connectors update to 40GHz Supported
• Flexiable Cable Assembly to simplize installation
• 2X Thru Calibration included. (Separated)

製品仕様

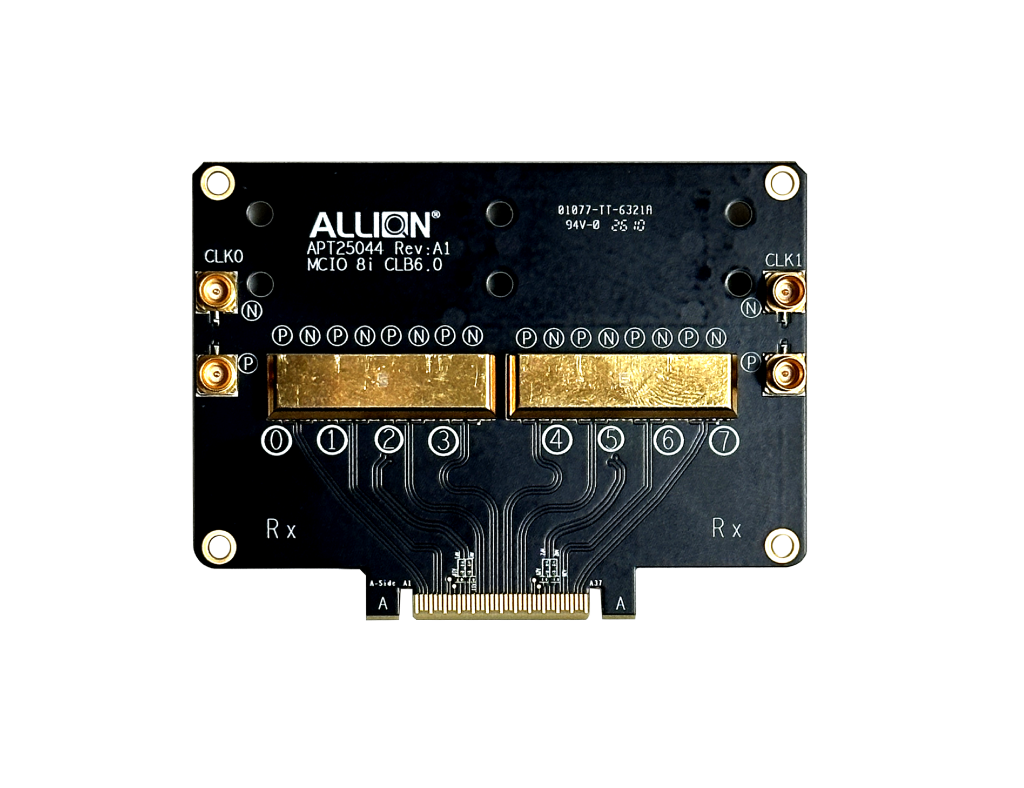

APT25044

• PCIe MCIO8i Golden Finger
• Four SMPM by 8 Connectors for All 8 Lanes
• Two Group SMP Connector for Reference Clock 1 & 2
