PCIe M.2 CLB6.0 Test Fixture Set

製品概要

アリオン開発したPCIe M.2 CLB6.0 テストフィクスチャセットです。

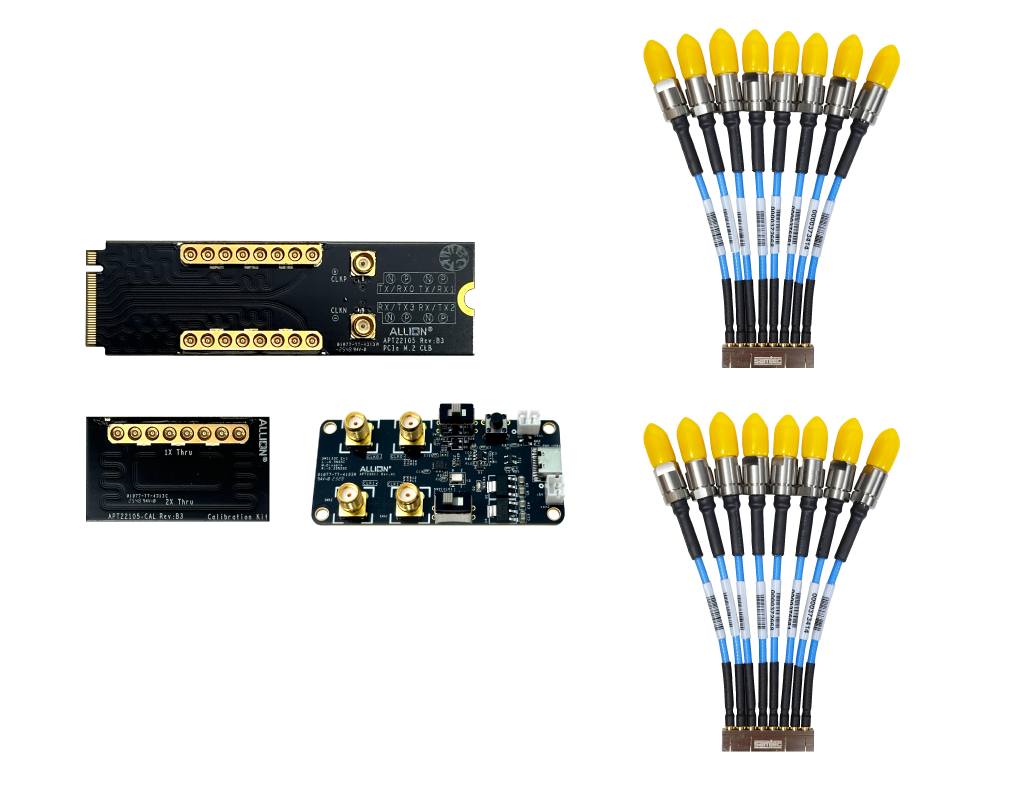

• 本製品は、以下のセット内容が含まれています：

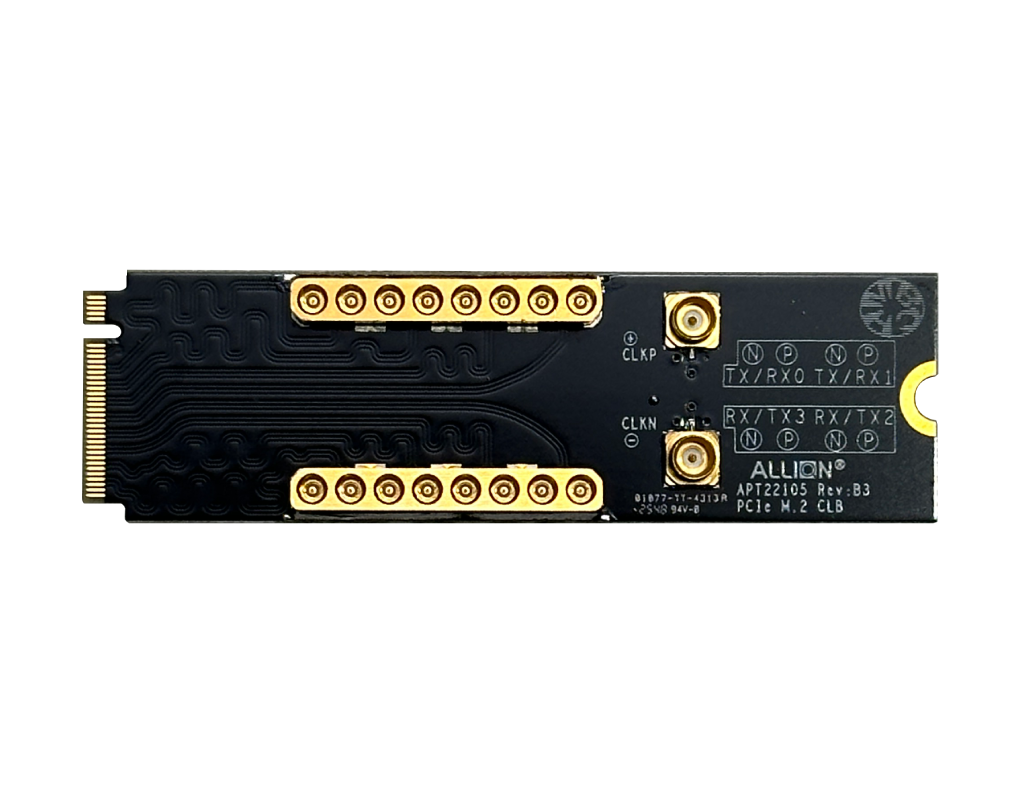

1. PCIe M.2 CLB6.0 Test Fixture (Model Name: APT22105)

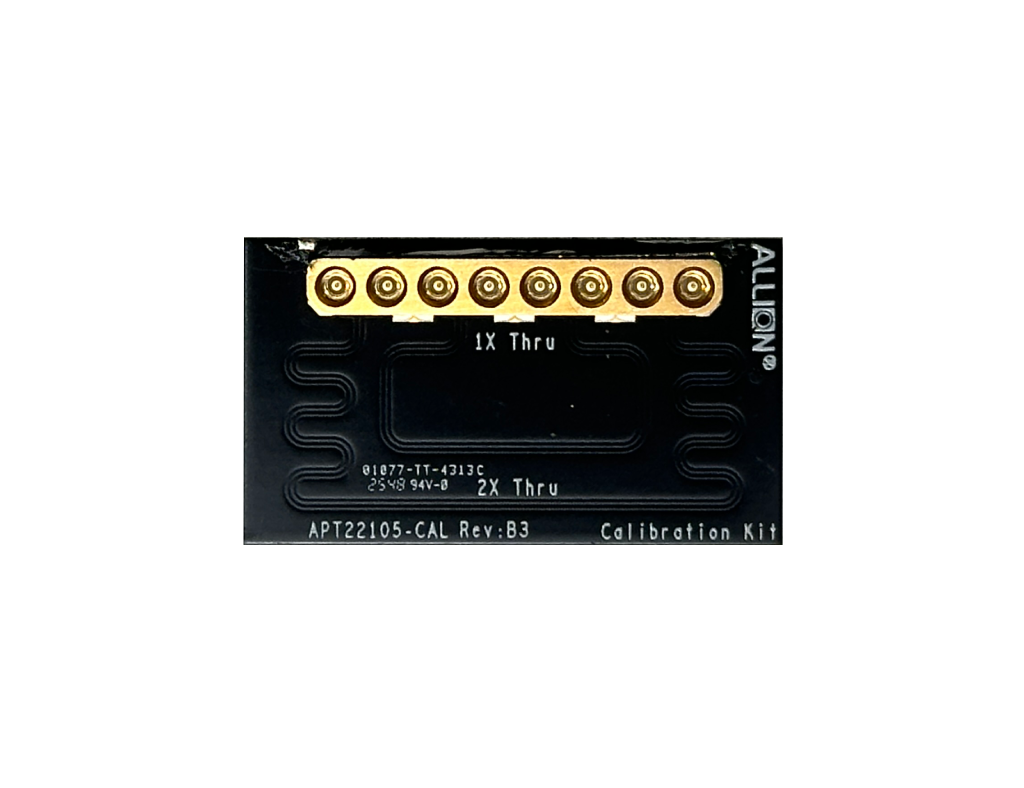

2. PCIe M.2 Calibration board (Model Name: APT22105-CAL)
3. Allion CMTS Board (Model Name: APT23011)
4. SMPM by 8 Cable Module*2

• 納期（受注生産）：約8～10週間

アプリケーション

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe M.2 Socket

特長

• Compatible with PCIe M.2 Gen4 / Gen5 Electrical Test for Tx & Rx.
• Stronger SMPM Connectors update to 40GHz Supported
• Flexible Cable Assembly to simple installation
• 2X Thru Calibration included. (Separated)

製品仕様

APT22015

• PCIe M.2 M-Key Golden Finger
• Two SMPM by 8 Connector for All 4 Lanes
• Two SMP Connector for Reference Clock
• Dimension : 22mm x 80mm
