PCIe MCIO8i CLB5.0 Test Fixture

製品ID: APT23066

製品概要

PCIe MCIO8i CLB5.0 Test Fixture Sets

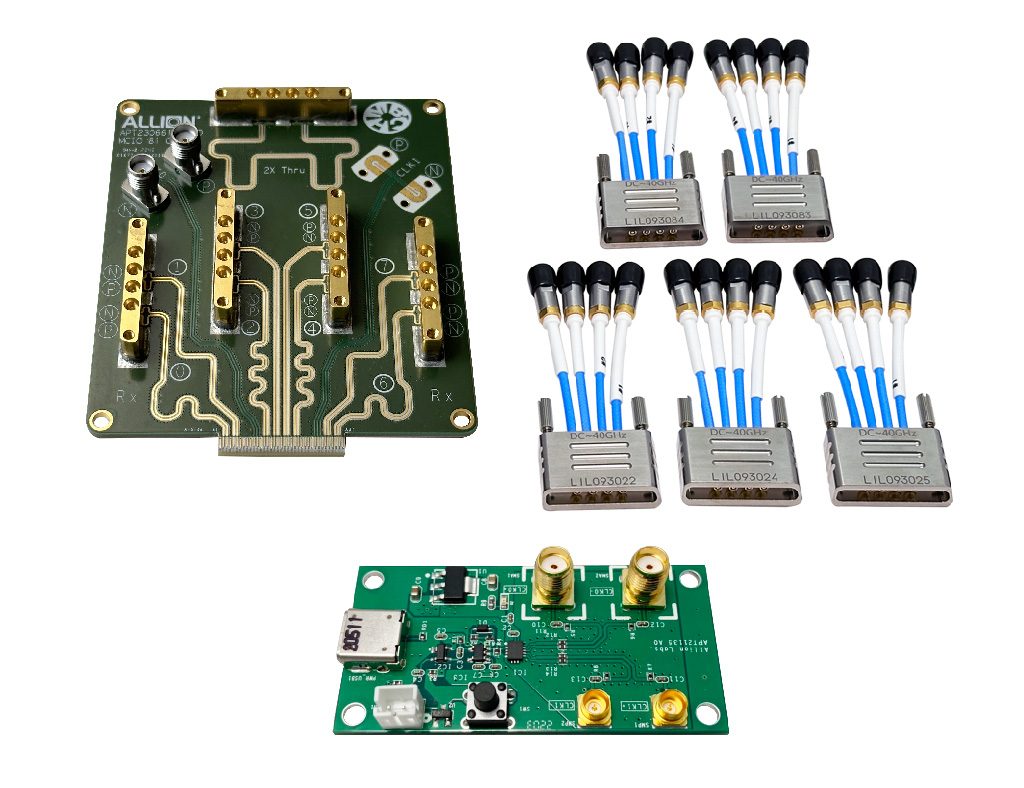

  • The PCIe MCIO8i CLB5.0 Test Fixture Set contains the below items:
  1. PCIe MCIO8i Test Fixture (Model Name: APT23066)
  2. Allion CMTS Board (Model Name: APT21135)
  3. 1×4 SMPM Cable Module*5 (4 for Tx / 1 for Rx)
  • The lead time will be 4-6 weeks from order to shipment.

アプリケーション

  • PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen5)
  • PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  • Applicable for Server, IPC, Notebook, Desktop or system product which has designed MCIO8i interface

特長

  • PCIe Compliance Electical Test for Tx/Rx
  • Durable SMPM Connectors and flexible Cable Assembly
  • SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  • 2X Thru Calibration onboard

製品仕様

APT23066

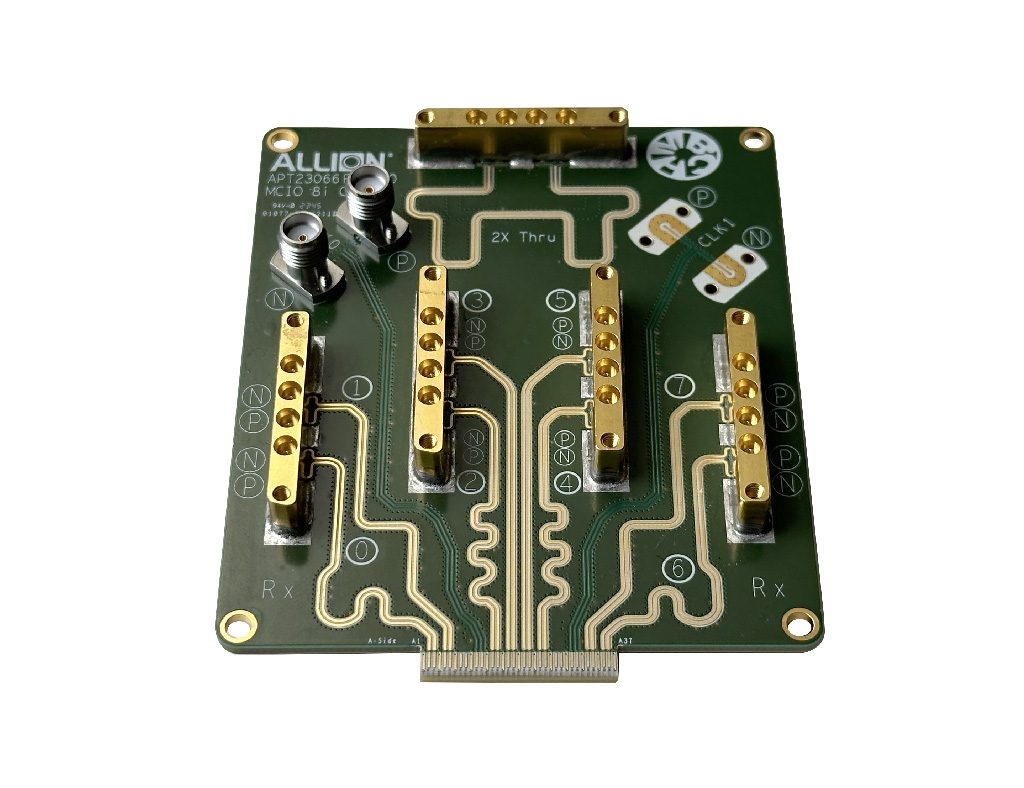

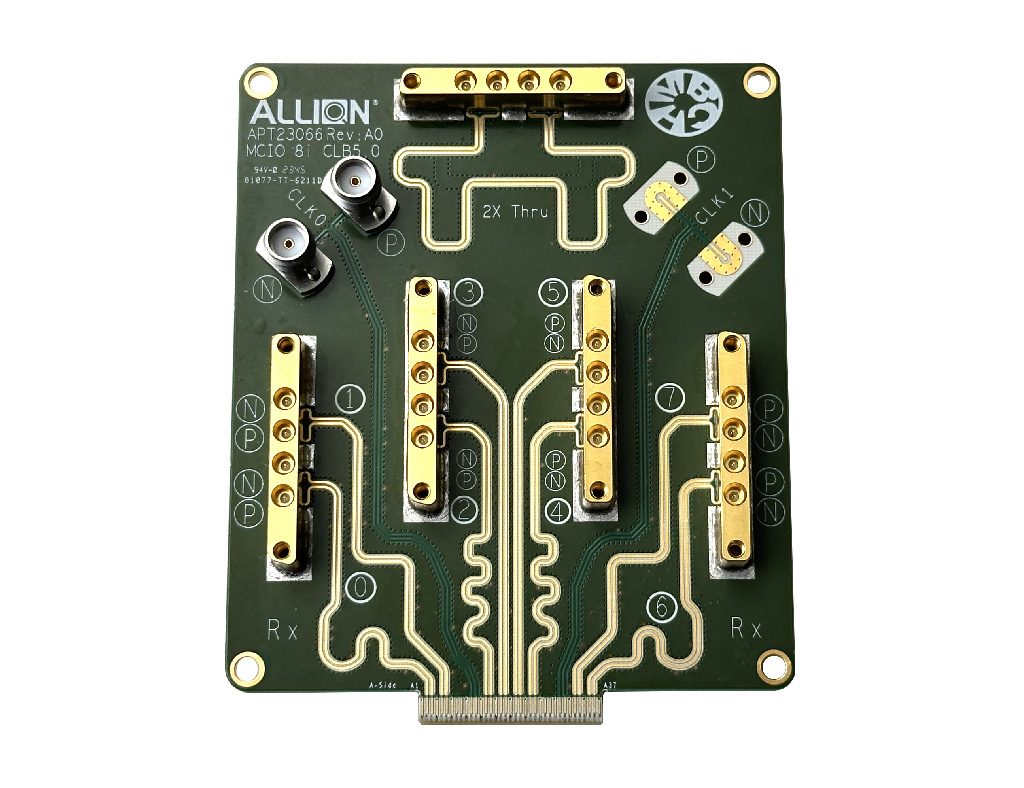

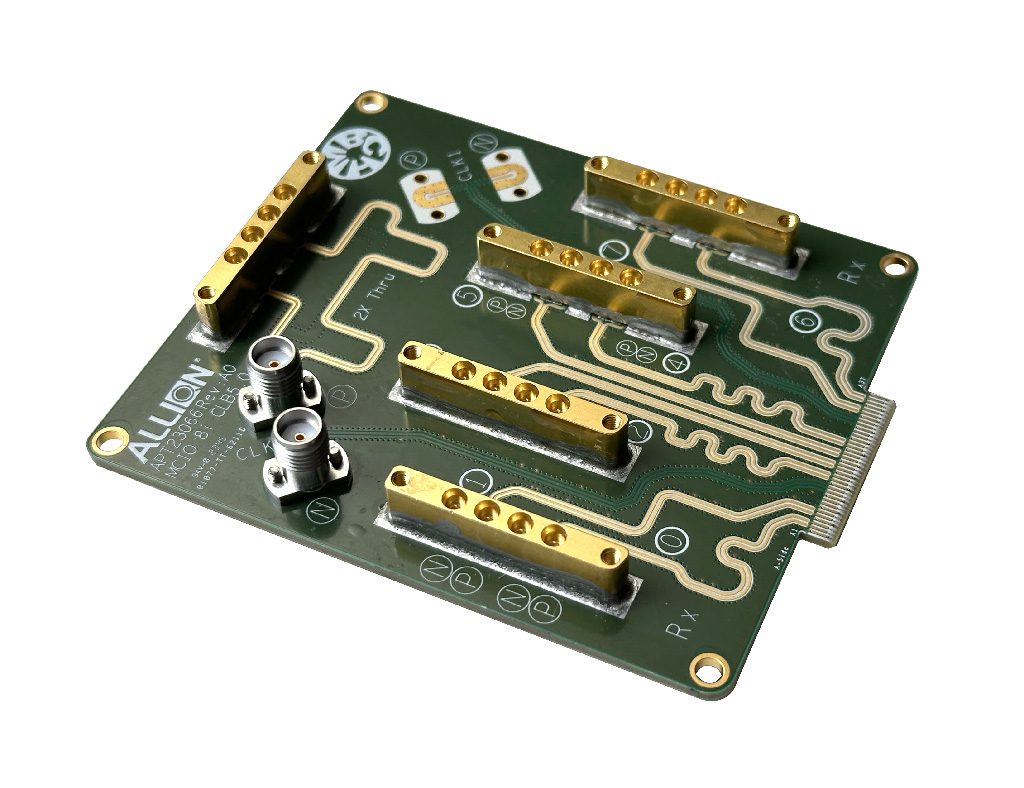

  • PCIe MCIO8i Golden Finger
  • Eight SMPM(Quad Ports) Connector for Tx/Rx Lane 0~7
  • Two SMA Connector for Reference Clock
  • One SMPM(Quad Ports) Connector for 2X Thru Calibration
  • Dimesion : 69.85mm x 84.81mm
