PCIe5.0 CEM Receptacle Test Fixture for Internal Cable

製品概要

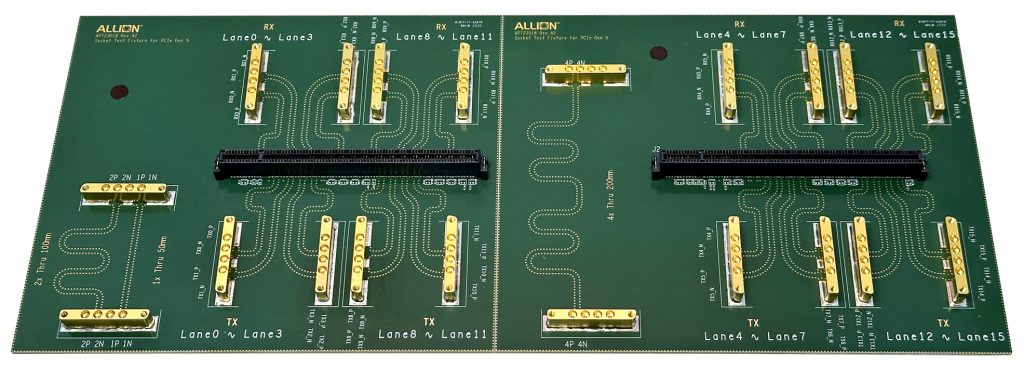

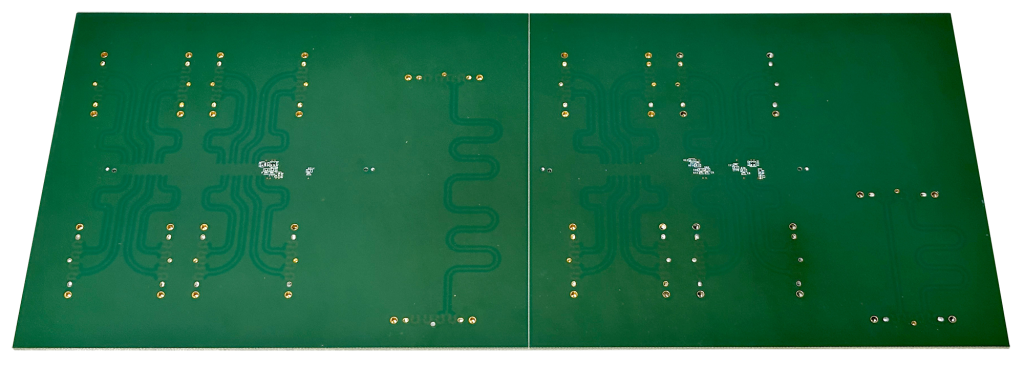

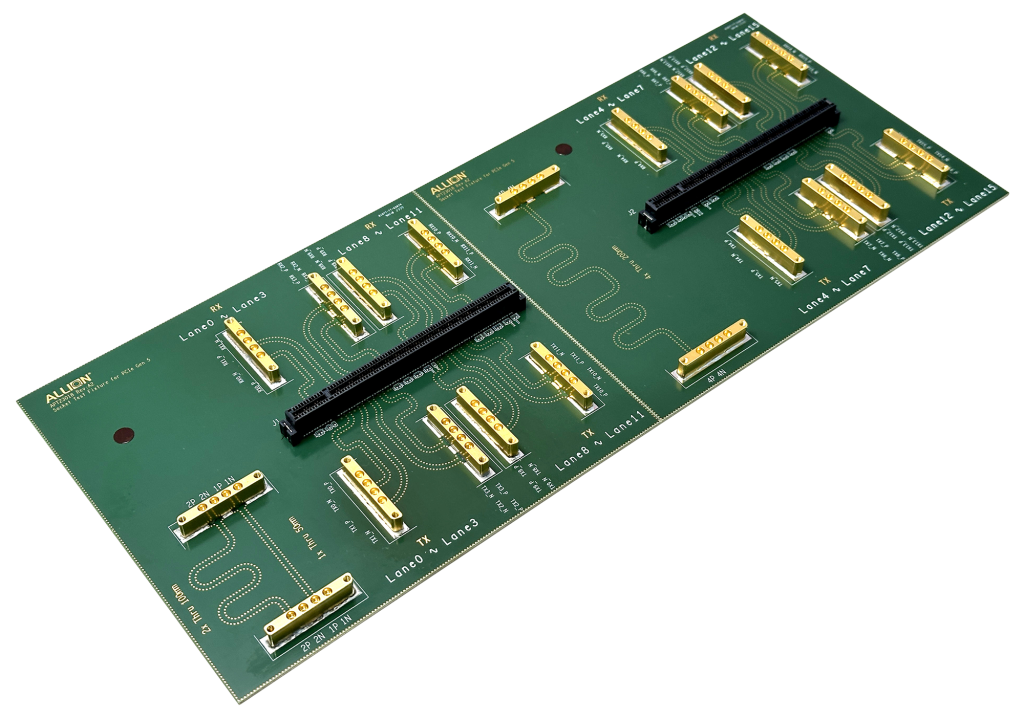

PCIe5.0 CEM Receptacle Test Fixture with SMPM Connectors and Cable Module

• PCIe5.0 CEM Receptacle Test Fixture for Internal Cable Set contains the below items:

1. PCIe5.0 CEM Receptacle Test Fixture (Model Name: APT23018)
2. Cable Module*16 (Optional)

• The lead time will be 2-4 weeks from order to shipment.

アプリケーション

PCIe5.0 CEM Cable & Connector Signal Integrity measurement for Impedance, IL, RL, DDNEXT,  DDFEXT, Inter-pair Skew.

特長

• PCIe5.0 X16 Full Lanes Support for Cable Validation
• Durable SMPM Connectors and flexible Cable Assembly
• SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
• 1X/2X/4X Thru Calibration is designed onboard

製品仕様

• On the Left side of PCB:

1. Eight SMPM Connectors for Lane 0~3 & Lane 8~11
2. Two SMPM Connectors for 1X/2X Thru Calibration

• On the Right side of PCB

1. Eight SMPM Connectors for Lane 4 ~ 7 & Lane 12~15
2. Two SMPM Connectors for 4X Thru Calibration

• Total Sixteen SMPM Connectors for Full Lanes Support
• PCIe5.0 X16 Receptacle Connector for Cable Connection
• Dimension: 320mm x 135mm (L x W)
