PCIe CEM x16 CLB6.0 Test Fixture

製品概要

アリオン開発したPCIe CEM x16 CLB6.0 テストフィクスチャセットです。

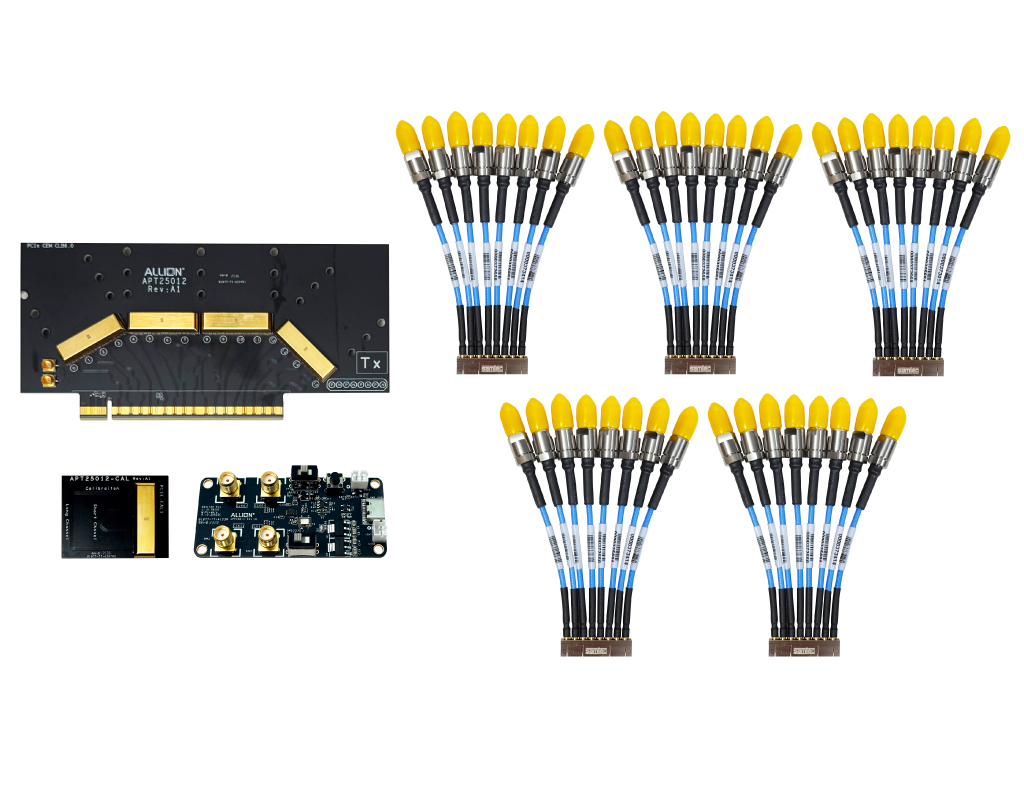

• 本製品は、以下のセット内容が含まれています：

1. PCIe CEM Slot by 16 Test Fixture (Model Name: APT25012)

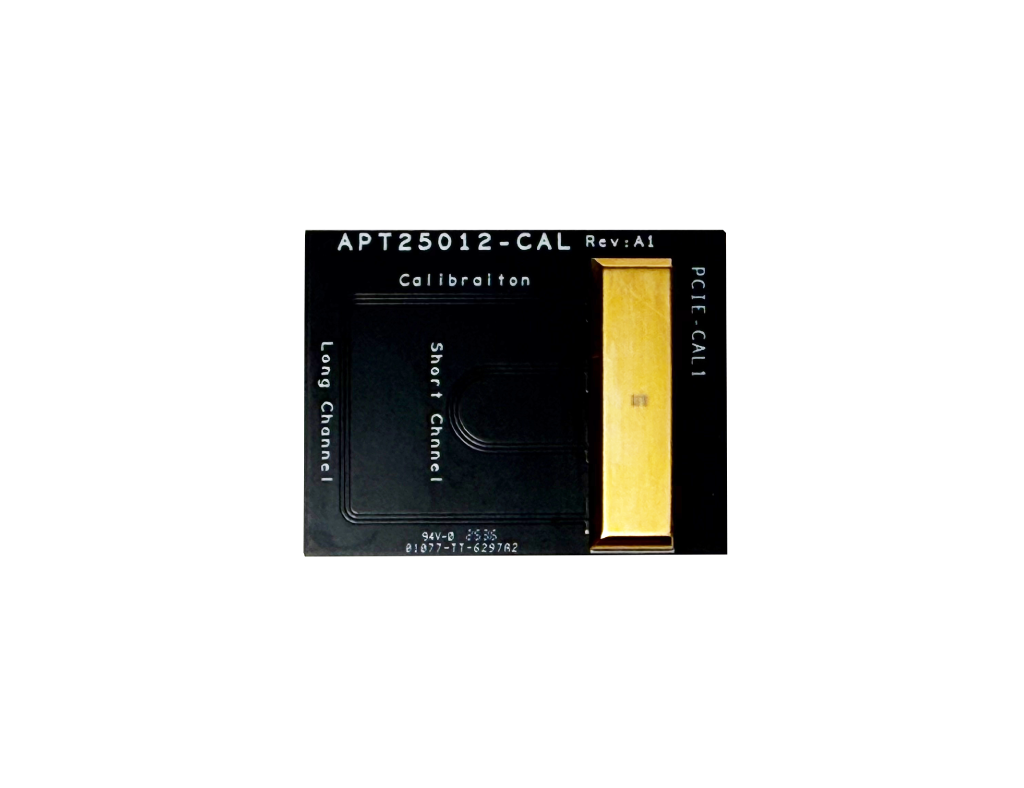

2. PCIe CEM CAL Board (Model Name: APT25012-CAL)
3. Allion CMTS Board (Model Name: APT23011)
4. SMPM by 8 Cable Module*5 (4 for Tx, 1 for Rx)

• 納期（受注生産）：約8～10週間

アプリケーション

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe CEM Slot by 16 form factor

特長

• PCIe CEM Slot by 16 Compliance Electical Test for Tx/Rx
• Durable SMPM by 8 Connectors and flexible Cable Assembly
• SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
• 2X Thru Calibration board is provided (connectors not included)

製品仕様

APT25012

• PCIe CEM by 16 Golden Finger
• Eight Ports SMPM by 8 Connector for Tx/Rx from Lane0~Lane15
• Two SMP Connector for Reference Clock
• Dimesion : 74.27mm x 153.49mm
