PCIe OCP x16 CLB6.0 Test Fixture
製品ID: APT25013
製品概要
アリオン開発したPCIe OCP x16 CLB6.0 テストフィクスチャセットです。

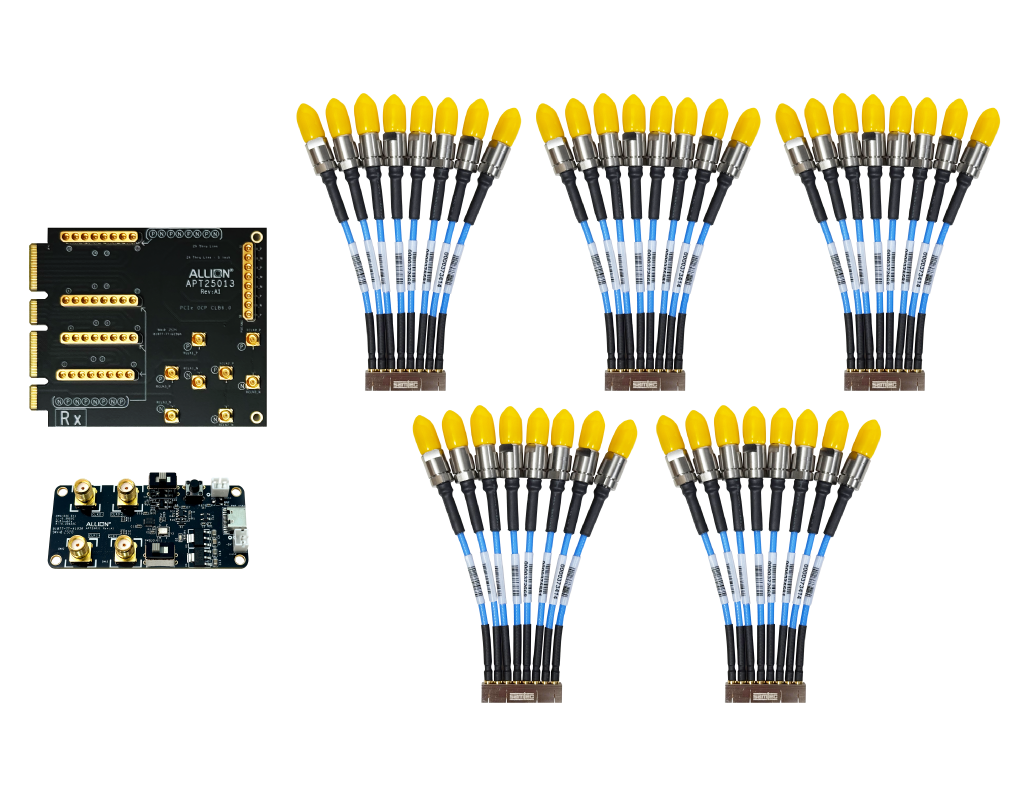

- 本製品は、以下のセット内容が含まれています：
- PCIe OCP Slot by 16 Test Fixture (Model Name: APT25013)
- Allion CMTS Board (Model Name: APT23011)

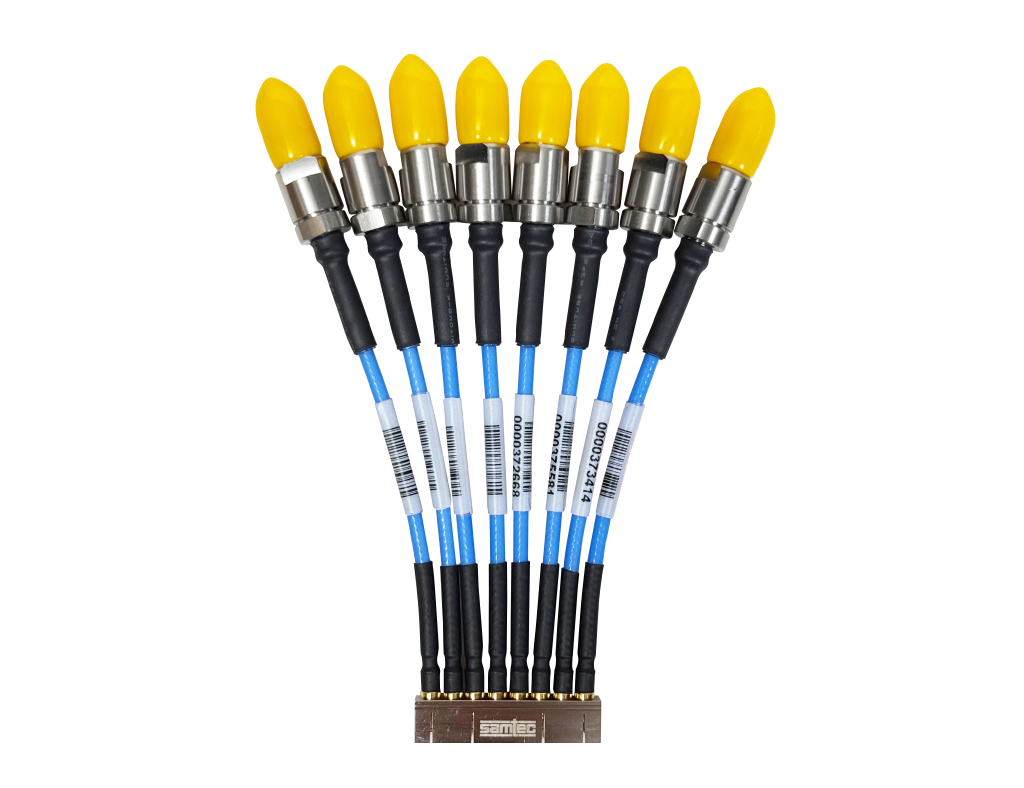

- SMPM by 8 Cable Module*5 (4 for Tx, 1 for Rx)
- 納期（受注生産）：約8～10週間
アプリケーション
- PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
- PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
- Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe OCP Slot by 16 form factor
特長
- PCIe OCP Slot by 16 Compliance Electical Test for Tx/Rx
- Durable SMPM by 8 Connectors and flexible Cable Assembly
- SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
- 2X Thru Calibration line is provided (connectors not included)
製品仕様

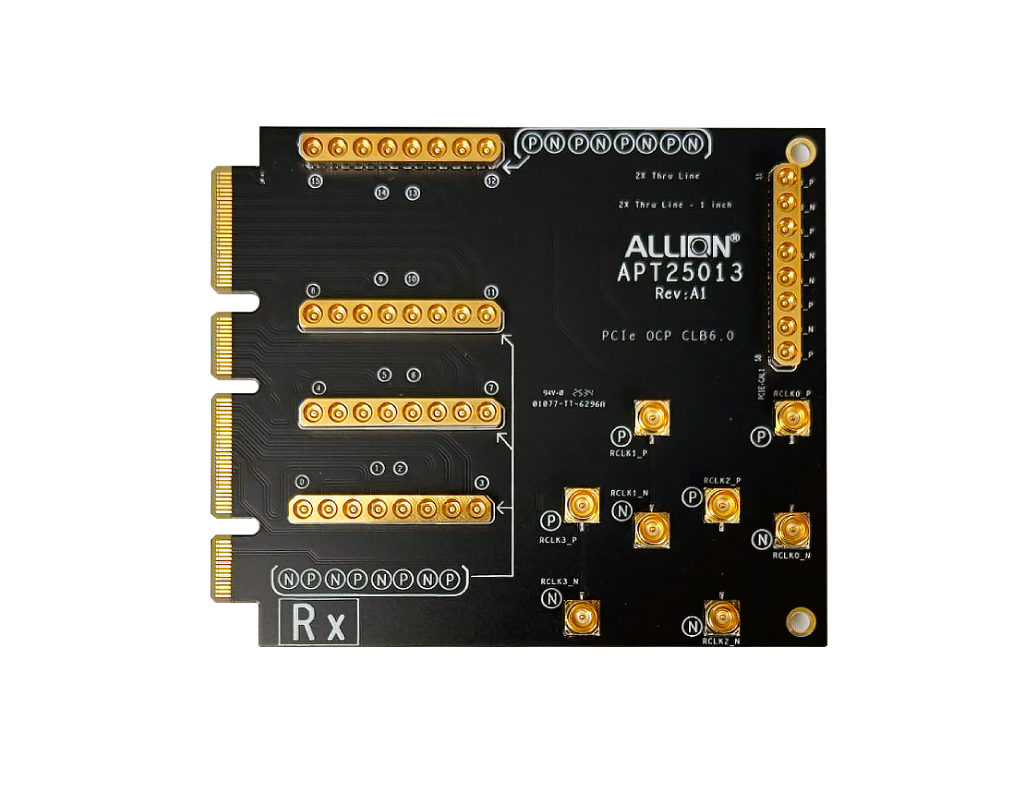

APT25013
- PCIe OCP by 16 Golden Finger
- Eight Ports SMPM by 8 Connector for Tx/Rx from Lane0~Lane15
- Eight SMP Connector for Reference Clock
- 2x Thru Calibration Line onboard
- Dimesion : 76mm x 89.64mm
