PCIe E1/E3 x8 CLB6.0 Test Fixture

製品概要

アリオン開発したPCIe E1/E3 x8 CLB6.0 テストフィクスチャセットです。

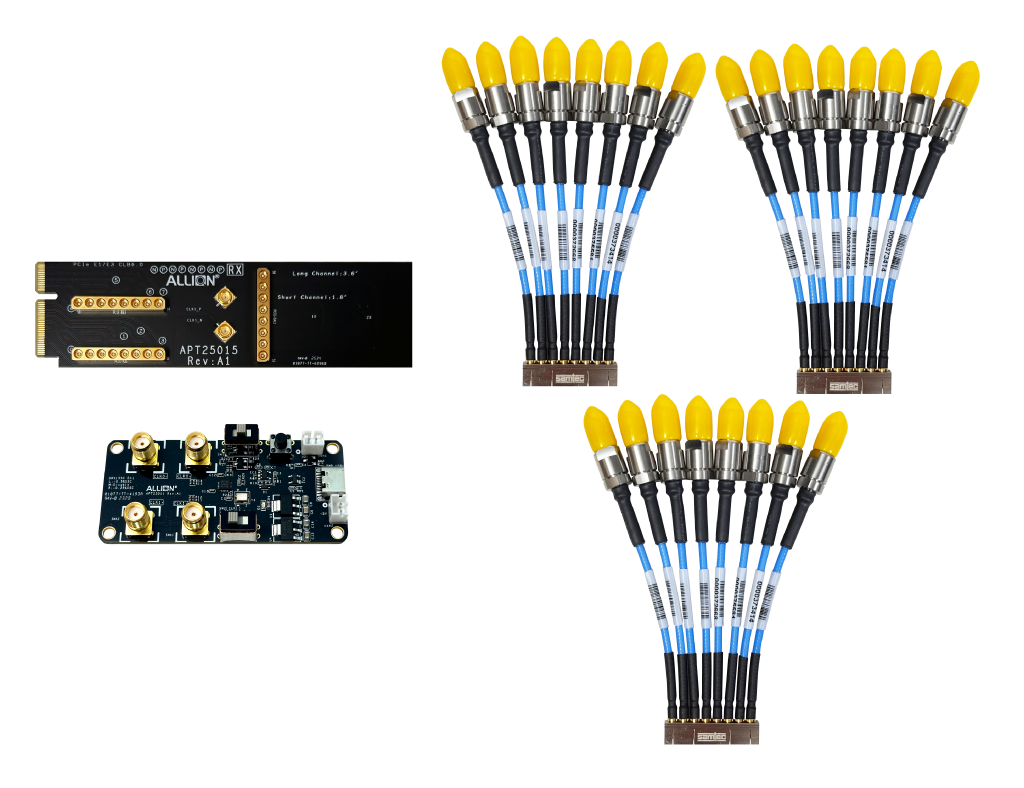

• 本製品は、以下のセット内容が含まれています：

1. PCIe E1/E3 Slot by 8 Test Fixture (Model Name: APT25015)
2. Allion CMTS Board (Model Name: APT23011)

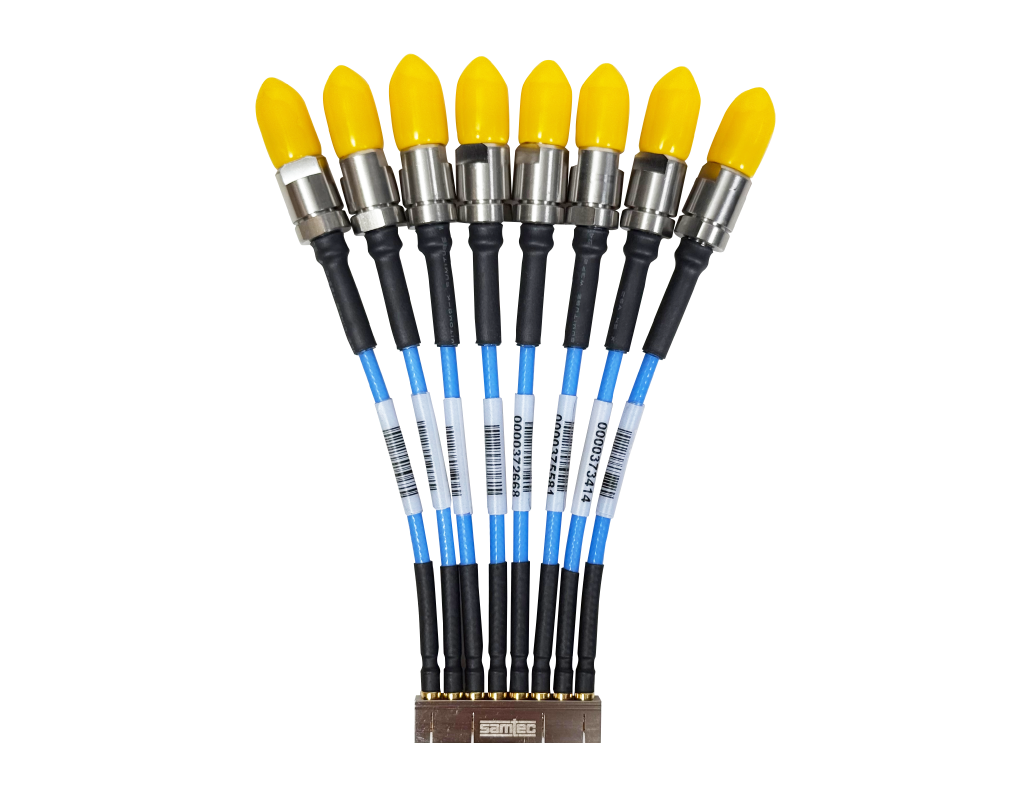

3. SMPM by 8 Cable Module*3 (2 for Tx, 1 for Rx)

• 納期（受注生産）：約8～10週間

アプリケーション

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen6)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen6)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed PCIe E1/E3 Slot by 8 form factor

特長

• PCIe E1/E3 Slot by 8 Compliance Electical Test for Tx/Rx
• Durable SMPM by 8 Connectors and flexible Cable Assembly
• SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
• 2X Thru Calibration line is provided (connectors not included)

製品仕様

APT25015

• PCIe E1/E3 Golden Finger
• Four Ports SMPM by 8 Connector for Tx/Rx from Lane0~Lane7
• Four SMP Connector for Reference Clock
• 2x Thru Calibration Line onboard
• Dimesion : 118.75mm x 33.75mm
